$24,800.00
The J-BERT N4903B high-performance serial BERT provides the most complete jitter tolerance
test for embedded and forwarded clock devices.
The N4903B is an ideal choice for R&D and validation teams characterizing and stressing chips and
transceiver modules that have serial I/O ports up to 7 Gb/s, 12.5 Gb/s or even 14.2 Gb/s. It can
characterize a receiver’s jitter tolerance.
All N4903B’s are provided with NIST Traceable calibration and a one year warranty. Please contact us if Z540 or 17025 calibration is required.
| Image | Stock | Price | Action | Description |
|---|---|---|---|---|
|
1 | $ 24800.00 | Keysight N4903B-C13/J10/J11/J12/J20/A01/A02/CTR/002 | |
|
0 | $ | Keysight N4903B-A01/C13/CTR/J10/J11/J20 |
Accurate characterization is achieved with clean signals from the pattern generator, which features exceptionally low jitter and extremely fast transition times. Built-in and calibrated jitter source allow accurate jitter tolerance testing of receivers.
Test set-up is simplified significantly, because the J-BERT N4903B is designed to match serial bus standards optimally with its differential I/Os, variable voltage levels on most outputs, built-in jitter and ISI, pattern sequencer, reference clock outputs, tunable CDR, pattern capture and bit recovery mode to analyze clock-less and non-deterministic patterns.SER/FER analysis allows jitter tolerance testing of devices using retimed loopback. A second data output with independent pattern memory and PRBS can be used as an aggressor channel for crosstalk tests, or when adding channels externally for OOB timing tests or emulation of 3-level signals or signal de-emphasis.
Faster test execution is possible with J-BERT’s automated jitter tolerance tests fast total jitter measurements.
The J-BERT N4903B is a long-term investment which is configurable for today’s test and budget requirements but also allows upgrades from the N4903A model, and later retrofit of all options and full speed when test needs change
Keysight’s N4900 serial BERT series offers key benefits:
– Excellent precision and sensitivity for accurate measurements
– Choice of feature set and frequency classes to tailor to test needs and budget
– State-of-the-art user interfaces with color touch screen
– Remote control via LAN, USB and GPIB interfaces, compatible with existing command set
Keysight 71612, 81630A Series, N4900 Series
– Small form factor saves rack or bench space

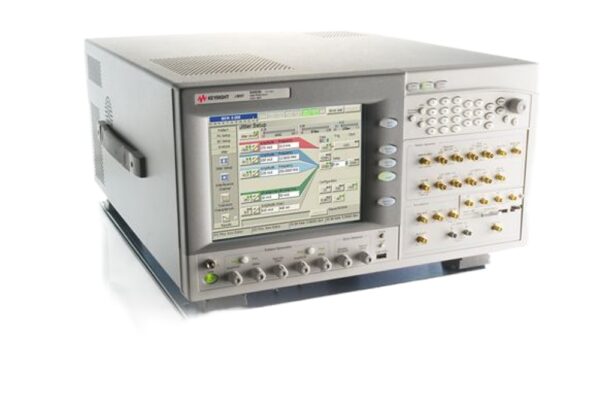

Keysight N4903B High-Performance Serial BERT, 12.5 GB/s
| Weight | 60 lbs |
|---|---|
| Dimensions | 10 × 19 × 25 in |
| Option | Description | |
|
A Pattern Generator and Error Detector with a data rate range from 150 Mb/s to 7 Gb/s. Includes built-in clock data recovery | |
| C13 | A Pattern Generator and Error Detector with a data rate range from 150 Mb/s to 12.5 Gb/s. Includes built-in clock data recovery (CDR) | |
| D14 | Extends the maximum data rate of the Pattern Generator to 14.2 Gb/s | |
| G07 | A Pattern Generator only (no error detector) with a data rate range from 150 Mb/s to 7 Gb/s. | |
| G13 | A Pattern Generator only (no error detector) with a data rate range from 150 Mb/s to 12.5 Gb/s. | |
| CTR | CDR with a tunable and compliant loop bandwidth, included with options C07 and C13 | |
| 002 | Second auxiliary data output with independent Pseudo-Random Binary Sequence (PRBS) and pattern capabilities for applications like crosstalk testing | |
| 003 | Enables half-rate clocking with variable duty cycle for testing forwarded clock devices. | |
| A01 | Adds a bit recovery mode, which is used for analyzing unknown or non-deterministic patterns | |
| A02 | Adds Symbol Error Ratio (SER) and Frame Error Ratio (FER) analysis for measuring coded and retimed data streams | |
| A03 | Enables analysis of 128b/132b coded patterns | |
| J10 | Adds calibrated, built-in jitter injection for comprehensive jitter tolerance testing | |
| J11 | Adds Spread Spectrum Clocking (SSC) for emulating and testing SSC signals | |
| J12 | Provides an automated jitter tolerance compliance suite for standard-based testing | |
| J20 | Adds an interference channel for injecting Intersymbol Interference (ISI) and sinusoidal interference |
| Part Number | Description |
Qty
|
| Power Cord |
1
|
